We develop advanced mechanisation systems for airport logistics, including baggage handling, ULD transport, cargo processing and catering logistics.
Our solutions are designed to automate manual processes, improve operational efficiency and reduce physical strain on employees.
Airport Logistics.
ULD Unloading

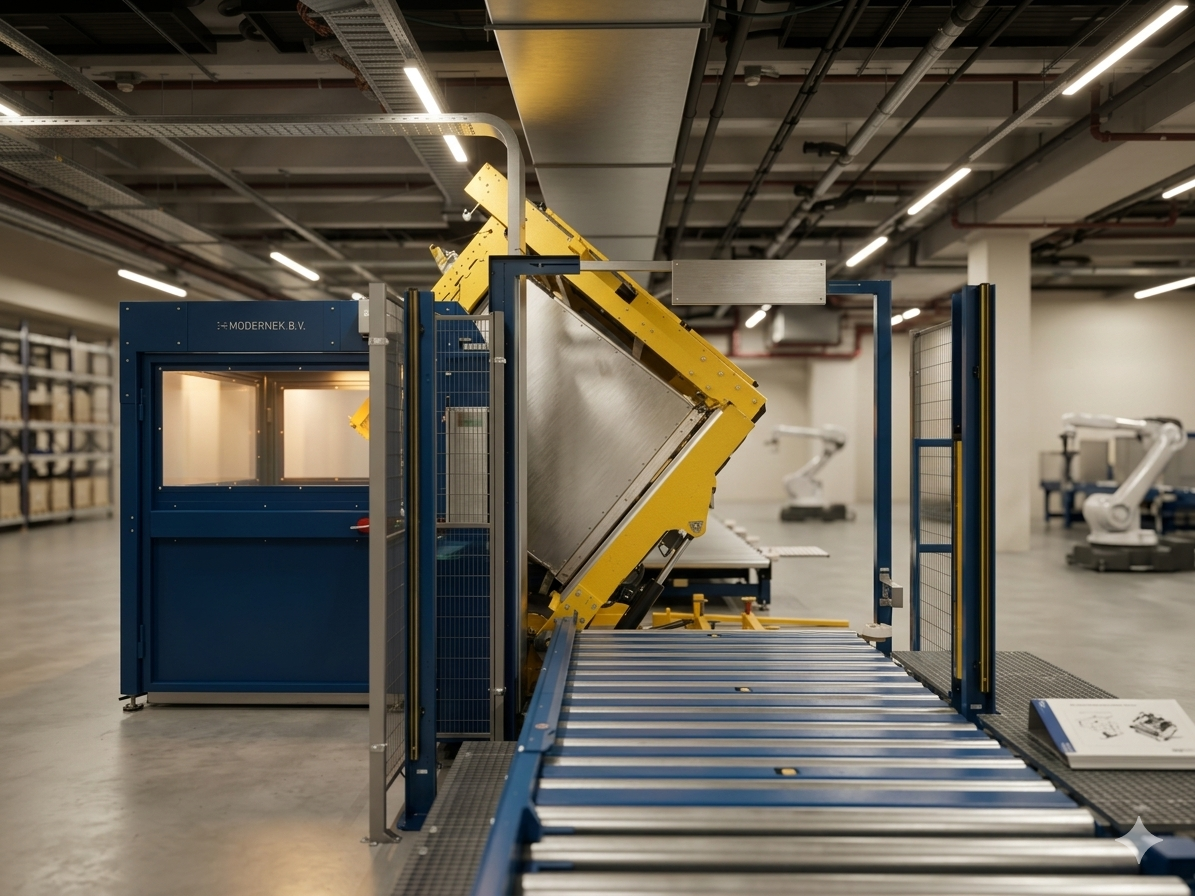

Automated ULD unloading with the Bagtipper. Every tip improves baggage handling.
An ergonomic solution for smarter unloading
Airports are increasingly challenged by staff shortages and strict ergonomic requirements. The Bagtipper G2 is a fully automated unloading system designed to address both.
Building on over 15 years of proven technology, Moderniek combined the original Bagtipper (2010) with patented CartTipper innovations into a next-generation solution. The Bagtipper G2 integrates simultaneous ULD infeed and outfeed, advanced tilt and shake algorithms, a dedicated ULD door holding mechanism, and tilting separation conveyors.
The result is a highly efficient, ergonomic, and fully automated unloading process that minimizes manual handling while maximizing throughput.
-
Proven technology with over 15 years of operational experience
Fully automated unloading process
Simultaneous ULD infeed and outfeed for continuous operation
Compact footprint with a height below 2,900 mm
Gentle handling of baggage
Throughput up to 1,200 bags per hour
Adaptive unloading algorithms per ULD type
Integrated ULD door holding mechanism
One system for both wide-body and narrow-body operations
-
Every container behaves differently. The Bagtipper uses advanced ULD recognition to identify the container type and automatically select the optimal unloading algorithm.
Based on this detection, the system applies tailored tilt and motion sequences to ensure complete and controlled unloading of each ULD.
After unloading, baggage is automatically detected and singulated using advanced control logic. Through controlled transitions and intelligent flow separation, the system ensures a smooth and continuous baggage stream.
The result is a reliable, consistent, and fully automated flow of baggage, independent of container type.
-
The Bagtipper G2 is designed to handle both wide-body and narrow-body aircraft within a single system.
This is enabled by replacing traditional baggage carts with Airport Containers: robust, airport-dedicated containers transported on dollies.
Both Airport Containers and standard ULDs (AKE and AKH) can be unloaded fully automatically. The system supports simultaneous infeed and outfeed, allowing continuous operation without interruptions.
Airport Containers are designed without sharp edges or internal obstructions. This ensures optimal baggage flow and enables exceptionally high unloading performance.
-
The Bagtipper is a field-proven ULD handling system, developed in close collaboration with both the operator (KLM) and the airport authority (Amsterdam Airport Schiphol).
This collaboration ensured that both technical and operational requirements were fully integrated into the design.
Since its introduction in 2009, the system has processed over 6 million transfer bags in daily operation. This track record demonstrates its reliability and readiness for large-scale international deployment.
Choosing Bagtipper technology means investing in a high-quality, efficient, and ergonomic solution that elevates your unloading process.
Baggage Cart Unloading

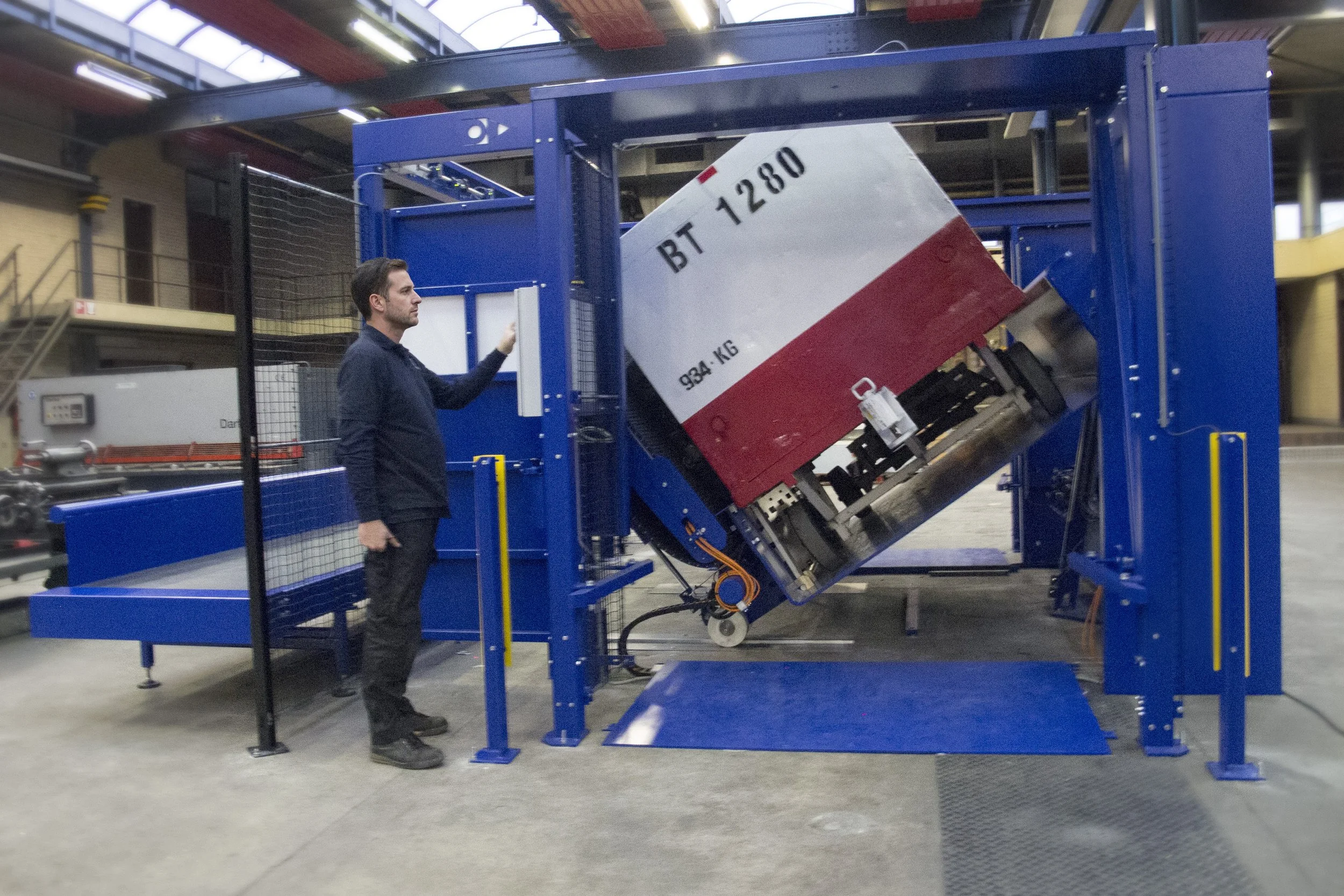

Cart Tipper
The Cart Tipper is a patented system designed to efficiently unload baggage carts used on airport aprons. Traditional unloading methods are physically demanding and time-consuming. The Cart Tipper automates this process and significantly improves ergonomics and operational efficiency.
Baggage carts or cart trains are positioned in the system and disconnected from the tractor. The Cart Tipper then tilts the carts in a controlled manner, allowing baggage to be gently transferred onto separation conveyors. These conveyors guide the baggage smoothly towards the baggage handling system or directly to the carousel.
Depending on the number of carts and the loading conditions, the system achieves capacities of 800 to 1200 bags per hour. The compact footprint allows easy integration into existing airport infrastructure.
Key benefits
Up to 1200 bags per hour
Ergonomic unloading of baggage carts
Handles single carts and cart trains
Gentle unloading via tilting conveyors
Compact installation footprint
Services
Moderniek supports customers throughout the entire lifecycle of their mechanisation systems, from installation and commissioning to long-term maintenance and system upgrades.
ULD Transport Systems
Efficient transport of Unit Load Devices (ULDs) is essential for safe and reliable baggage and cargo operations. Moderniek develops automated transport systems that move ULD containers between dollies, processing stations and storage areas.
After arrival of the dollies, containers can be transferred automatically onto the internal transport system. From there, they are transported to processing stations such as unloading systems or loading equipment. After processing, the containers can be returned automatically to the dollies.
These systems reduce vehicle movements in baggage basements, improve safety and optimise the use of available space.
Container Transfer Modules
Moderniek developed several transfer modules that ensure accurate positioning and transfer of ULDs between dollies and conveyor systems.
ULD Outfeed Pushers
Outfeed pushers return containers from the conveyor system back to dollies in a controlled and safe manner.
ULD Infeed Pushers
Infeed pushers allow automatic transfer of ULDs from dollies to the conveyor system.
Key benefits
Fully automated ULD transport
Reduced vehicle traffic in baggage areas
Improved safety and workflow efficiency
Integration with AGV systems
Automatic transfer between dollies and conveyors
Baggage Handling Systems
Efficient baggage handling requires reliable orientation and separation of bags to prevent jams and ensure a continuous flow throughout the handling process. Moderniek develops high-capacity systems that automatically orient and position baggage before it enters the main baggage handling system.
Using smart conveyor transitions, independently driven conveyors and height differences, baggage can be separated efficiently while reducing manual handling and system interruptions.
Bagliner
The Bagliner automatically positions baggage using vision technology. Two rotating wheels move the bags into the correct orientation so that the short side faces forward. Each bag is centred on the conveyor before continuing to the next stage of the baggage handling process.
The system operates reliably on a compact footprint and achieves a capacity of approximately 1,200 bags per hour.
Upwheeler
The Upwheeler prevents bag jams caused by luggage resting on wheels or standing upright on the conveyor. By rotating baggage 90 or 180 degrees, the system ensures the correct orientation and improves the reliability of the baggage flow.
Key benefits
Automatic baggage orientation
Reduced bag jams and system downtime
Vision-based bag positioning
Up to 1200 bags per hour
Compact and reliable design
40+ years of smart, custom-built mechanisation.
Cargo Handling Systems
Moderniek provides advanced solutions for the handling, transport and unloading of air cargo containers (ULDs). Our cargo handling systems improve efficiency, safety and ergonomics while reducing manual handling in cargo operations.
CargoTipper
The CargoTipper is a fully automatic system designed for unloading cargo ULDs such as AKE and AKH containers.
Building on more than 15 years of proven tipper technology, the CargoTipper combines advanced tilt and shake algorithms with a door holding mechanism and tilting separation conveyors. These technologies allow cargo to be unloaded efficiently while protecting the goods.
Each container is recognised automatically, after which the system selects the optimal unloading algorithm. Cargo items are then separated and transferred onto conveyors for further processing.
Key benefits
Fully automated cargo ULD unloading
Advanced tilt and shake technology
Automatic container recognition
Continuous cargo flow
Reduced manual handling
Postal & Parcel Systems
Postal and parcel flows are an increasingly important part of modern air cargo operations. Moderniek develops systems that automate the unloading, transport and sorting of postal bags and parcel shipments.
Gated Conveyor Systems
Gated conveyor systems enable efficient bulk sorting of parcels and postal bags. Using gravity-based distribution, large volumes of parcels can be directed to multiple workstations for further processing.
Roll Container Unloading
Unloading parcels from roll containers, gitterboxes or aircraft containers can be physically demanding. Moderniek provides automated systems that unload goods in a controlled and dosed manner, increasing processing speed while improving operator safety.
Key benefits
Efficient bulk parcel handling
Gravity-based sorting systems
Automated container unloading
Reduced physical workload
Service & support
For service requests, maintenance or spare parts inquiries, please contact our service team directly or mention your request in the contact form. Our specialists will respond as quickly as possible.
In-Flight Catering Logistics
Efficient handling of catering trolleys is essential for reliable inflight service operations. The internal flow of catering trolleys during inbound handling, replenishment and outbound preparation requires well-organised and efficient logistics systems.
Moderniek develops compact and reliable systems that optimise trolley handling while reducing manual handling and improving workplace ergonomics.
Trolley Transport Systems
Automated conveyor systems transport catering trolleys efficiently through the facility. Depending on the layout and distances involved, solutions may include walking-beam systems, belt conveyors, chain conveyors or traverses.
Replenishment Systems
For trolley replenishment, Moderniek provides systems that position catering trolleys ergonomically at filling stations. A traverse system retrieves trolleys from the buffer and transports them to the replenishment area before returning them to the outbound buffer.
Trolley Buffer Systems
Walking-beam systems allow catering trolleys to be buffered efficiently in compact storage channels. The system automatically advances the trolleys when one is removed, ensuring a continuous and controlled flow.
Key benefits
Efficient trolley transport and buffering
Ergonomic replenishment stations
Reduced manual handling
Continuous trolley flow
Space-efficient system layouts
ULD Loading
Eltonomous
The Eltonomous is an advanced baggage loading system developed by our long-term partner Elten.
Airports worldwide face increasing labour shortages while baggage volumes continue to grow. The Eltonomous increases productivity per operator while significantly reducing physical strain during baggage loading.
Curious how Eltonomous can improve baggage loading at your airport?
Get in touch with Elten. Elten would love to share our expertise and discuss possible solutions.
The system integrates seamlessly with existing baggage handling systems and can be implemented in both greenfield and brownfield environments with minimal building modifications.
The Eltonomous supports loading of AKE, AKH and dolly containers and enables efficient handling of multiple baggage flows such as transfer baggage, economy and business baggage.
Key benefits
Ergonomic baggage loading assistance
Increased productivity per operator
Compatible with existing baggage handling systems
Supports AKE, AKH and dolly containers
Flexible integration in existing facilities
